Baffle Sound Absorbing Panels

Out of Stock
  • Caimi

Design by Marc Sadler

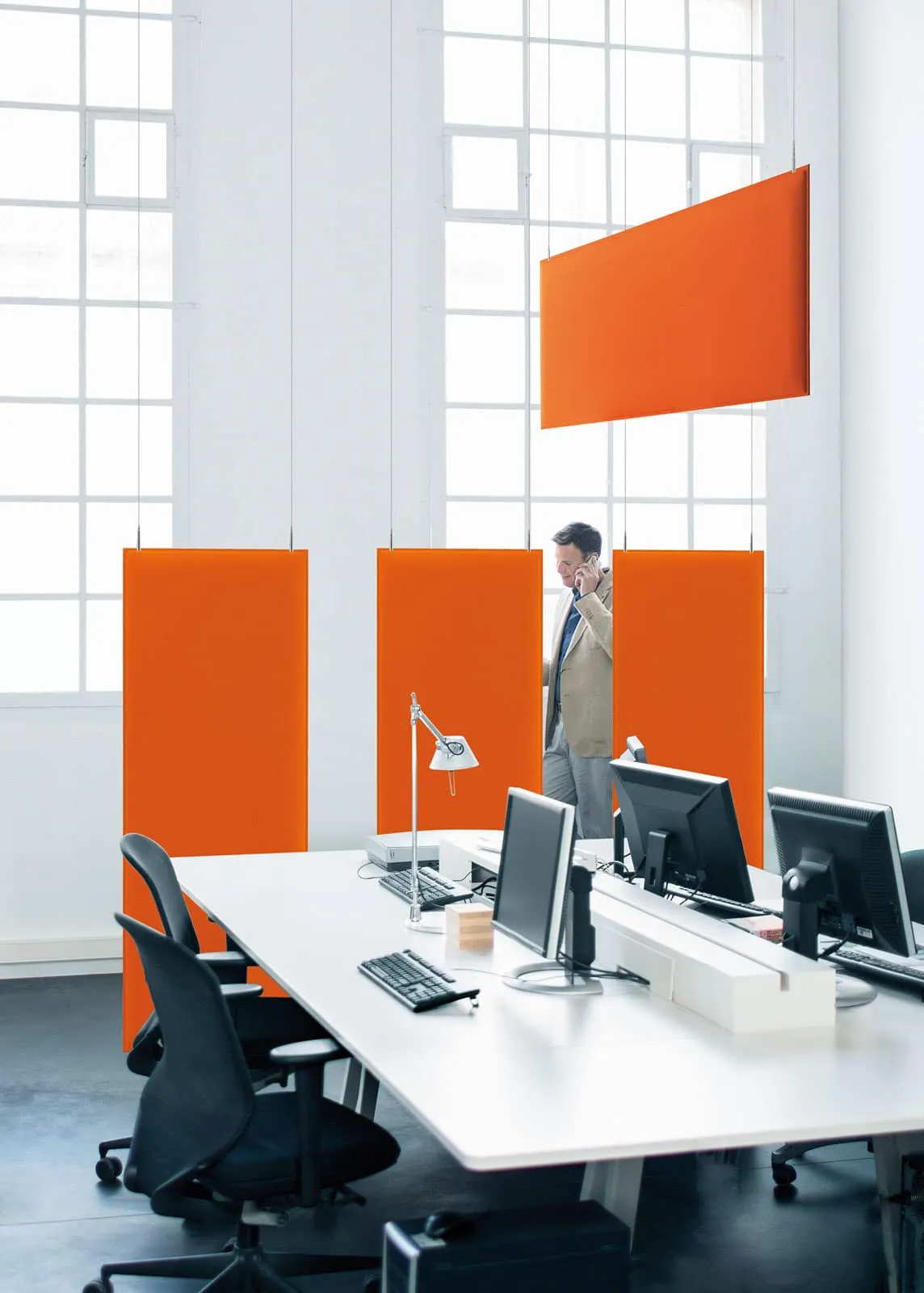

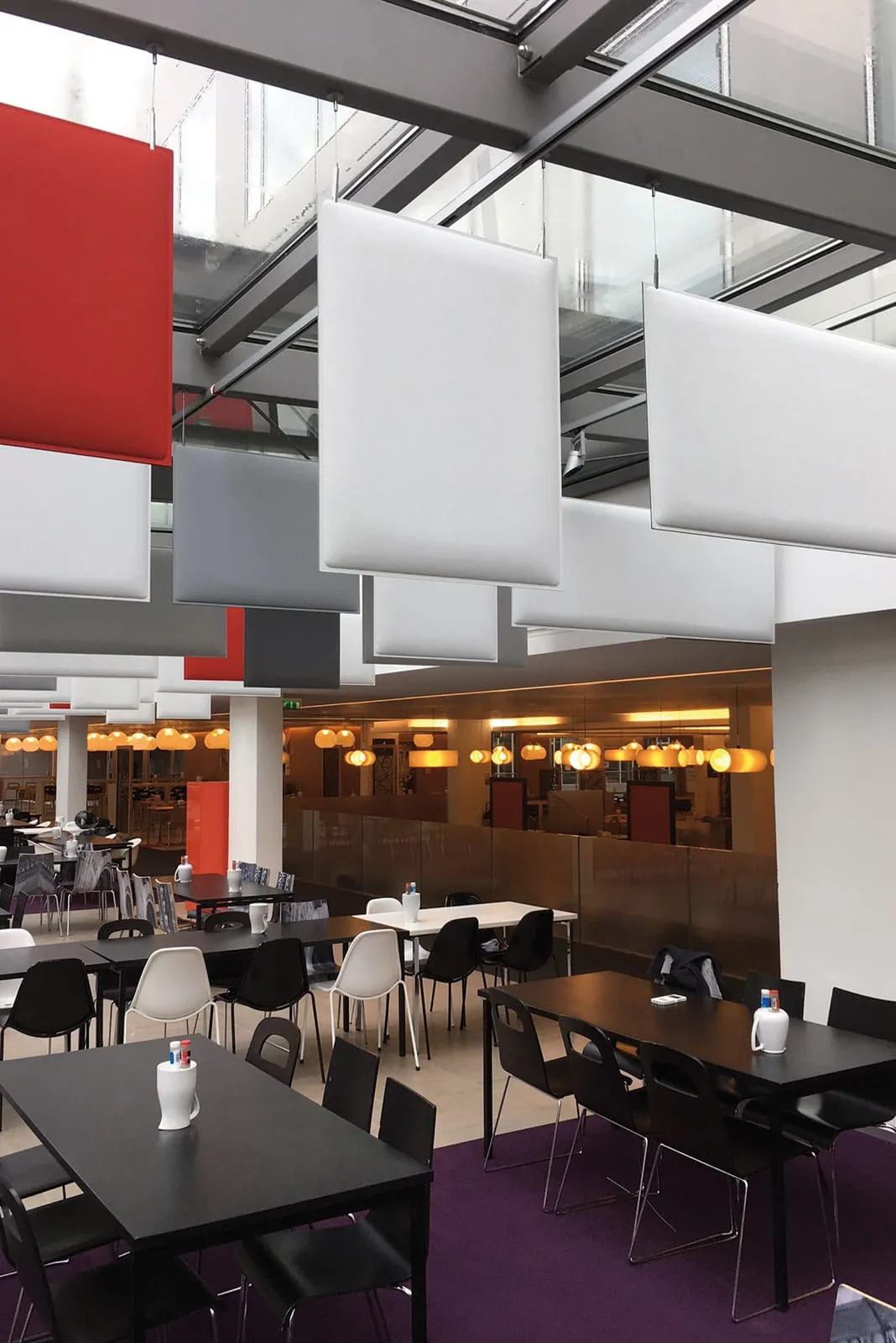

Baffle is a patented system designed to hang Snowsound sound-absorbing panels from the ceiling, showcasing its lightness and elegance. The adjustable cable height and array of sizes and colors allow for personalized compositions, enhancing both aesthetics and acoustics. The innovative joining system of the panel to the cables is completely invisible: a small cylindrical joint conceals the anchoring mechanism. Baffle anchors can be positioned along the upper edge of the panel with flexible spacing between cables, simplifying ceiling installation.

Description

Snowsound Technology Sound-Absorbing Element Panel Description: The Snowsound sound-absorbing element is suspended from the ceiling with cables. Both faces of the panel have a convex section and are 36 mm thick. The internal padding consists of variable-density polyester fiber, with density decreasing towards the core. This core is covered on both sides with Trevira CS® polyester fabric, firmly attached to the padding. The double-sided panel features identical characteristics on both sides and has a rigid edge produced through the manufacturing process, without the need for any supporting or stiffening frame. Key Features:
  • Fire Safety: The panel has a Euroclass B-s2, d0 fire reaction rating.
  • Environmental Certification: It is Greenguard Gold certified, validating its low VOC emissions and contribution to indoor air quality.
  • Sustainability: The panel is 100% recyclable and contains no detectable formaldehyde, according to UNI EN 717-2. It is free from felts or other hard-to-recycle organic materials.
  • Acoustic Performance: Tested in a reverberation chamber according to UNI EN ISO 354, the panel achieved an “Acoustic Absorption Class A” rating, in accordance with UNI EN ISO 11654.
Available Dimensions:
  • 75 x 44 cm
  • 59 x 59 cm
  • 119 x 44 cm
  • 75 x 59 cm
  • 139 x 44 cm
  • 119 x 59 cm
  • 159 x 44 cm
  • 159 x 59 cm
  • 179 x 44 cm
All formats can be used both vertically and horizontally.
